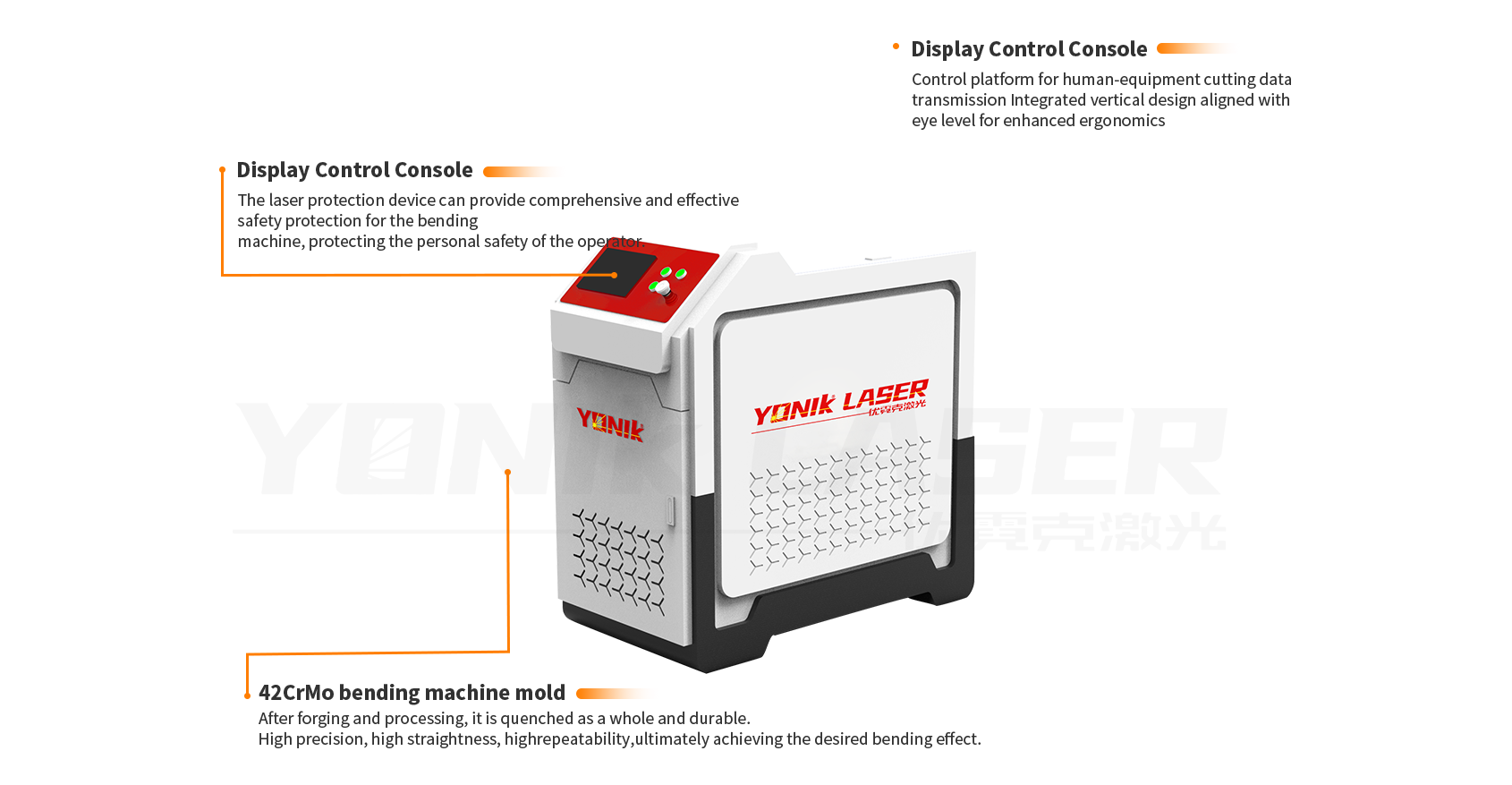

LW Handheld laser welding machine

Laser Power
1000W - 3000W
Laser wavelength
1070NM
Fiber length
15 meters
Applicable materials
Carbon steel plate, stainless steel plate, galvanized plate, aluminum alloy, etc
Application industry
Heating, chemical, food, machinery, textile, printing and dyeing, feed, medicine, building materials, etc

Consulting prices Contact Us

Product Introduction

Welding, cleaning, cutting, weld cleaning four-in-one handheld laser head, high cost performance

Up to 3KW laser, fast welding speed, 7.2m can be welded in 1 minute

The smallest size welding gun is only 0.7KG, wire feeding device accessories and spare parts (welding wire, spare welding gun head, lens)

The welding operation is simple and environmentally friendly, and the operation is safer

Good welding quality, less heat input, low cost, less loss, and cost reduction

Interactive touch screen control system, supports multiple languages such as Chinese, English, Korean, etc.

Customized solution

Advantage

Annealing

Eliminating welding stress through high-temperature annealing and natural aging
High intensity workbench

High intensity workbench, easy to disassemble and replace, no hindrance to production
High production efficiency

Real time dynamic feedback servo drive, precision gear transmission
Easy to operate and run

Advanced control system for intuitive adjustment of laser power

Parameter


Model	1500W-LW
Laser output power	1000WV/1500W/2000W/3000W
Laser wavelength	1070NM
Fiber length	Standard 10 meters, customizable 15 meters
operation mode	Continuous/Modulation
Welding speed range	0-120mm/s
Working environment temperature range	15°C-35°C
Working environment humidity range	<70% without condensation
Suggested welding thickness	0.5-4MM
Welding gap requirements	≤0.5MM
Overall dimensions	10556102CM
Equipment weight	140KG

* The above data is for reference only. Please refer to the actual product and product manual for specific information. Unless otherwise specified, the interpretation rights of the data involved in this website belong to YONIK Laser.
