H Open exchange platformlaser cutting machine

Laser Power
3000W - 60000W
Processing format
2500*8000mm
Linkage speed
100m/min
Applicable materials
Carbon steel plate, stainless steel plate, galvanized plate, aluminum alloy, etc
Application industry
Heating, chemical, food, machinery, textile, printing and dyeing, feed, medicine, building materials, etc

Product Introduction

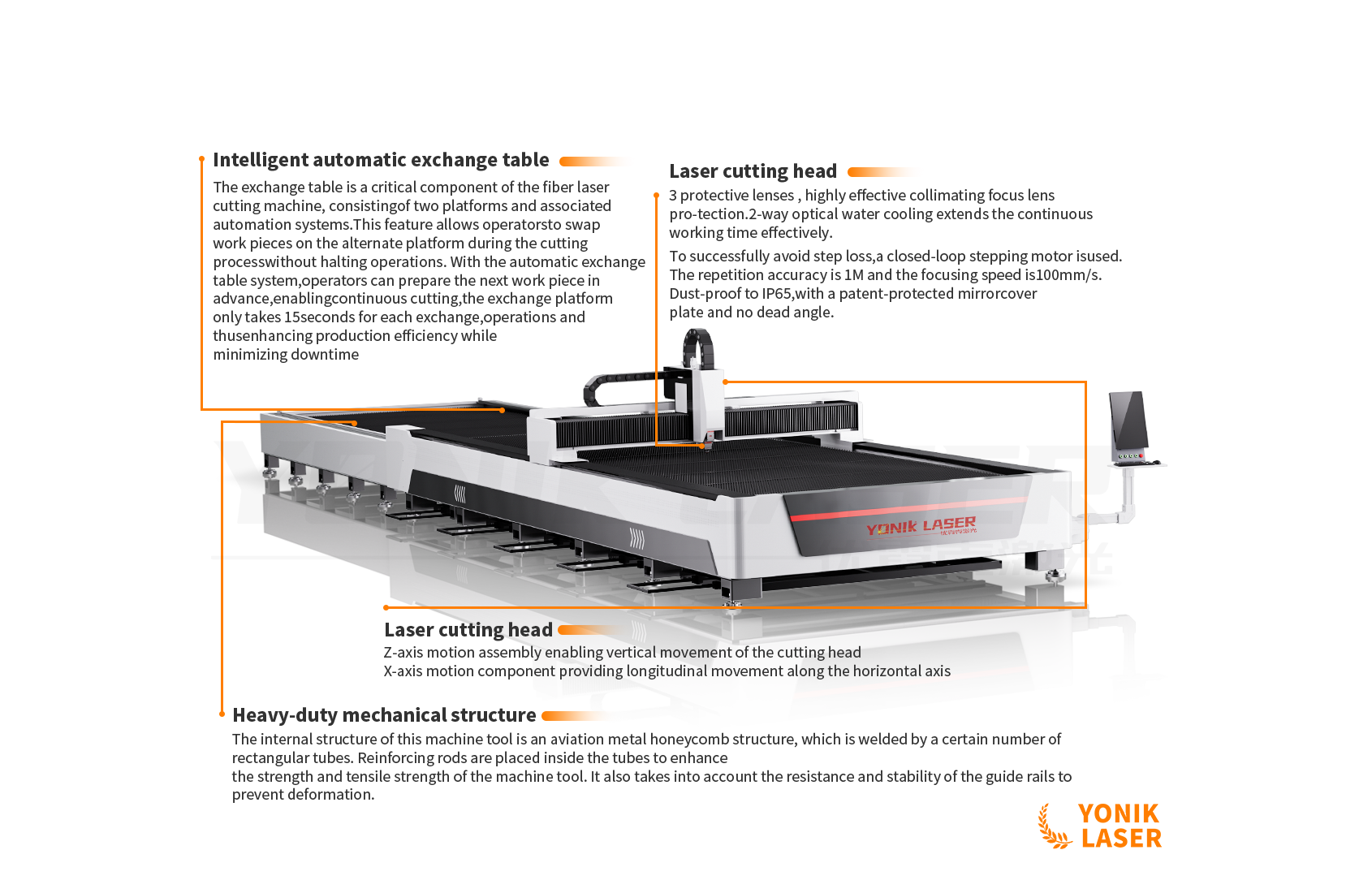

Interactive platform, continuous processing through automatic exchange table, improve loading and unloading efficiency, and increase productivity

Flexible processing: equipped with automatic exchange system, continuous processing can be carried out, productivity can be improved, and fast cutting of various materials can be supported

Intelligent operation: humanized operation interface and control system make operation simple and easy to master

Model: YL4020H YL6020H YL6025H YL8025H

Customized solution

Advantage

Annealing

Eliminating welding stress through high-temperature annealing and natural aging
High intensity workbench

High intensity workbench, easy to disassemble and replace, no hindrance to production
High production efficiency

Real time dynamic feedback servo drive, precision gear transmission
Easy to operate and run

Advanced control system for intuitive adjustment of laser power

Parameter


Model	Cutting range	Mechanical positioning accuracy	Maximum acceleration	Maximum positioning accuracy	Laser power
4020H	2000*4000mm	±0.05mm/min	1.5G	100m/min	3000W - 60000W
6020H	2000*6000mm	±0.05mm/min	1.5G	100m/min	3000W - 60000W
6025H	2500*6000mm	±0.05mm/min	1.5G	100m/min	3000W - 60000W
8025H	2500*8000mm	±0.05mm/min	1.5G	100m/min	3000W - 60000W

* The above data is for reference only. Please refer to the actual product and product manual for specific information. Unless otherwise specified, the interpretation rights of the data involved in this website belong to YONIK Laser.

Free design project proposal

CaseBrowse more case studies

DF Series - Machinery Product Manufacturing Company in Lanzhou City

Cut Type：Cutting Board

Product：DF-Series

Service Details

LW Series - A Steel Processing Company in Guizhou Province

Cut Type：Welding Machine

Product：LW-Series

Service Details

Related productsBrowse more products

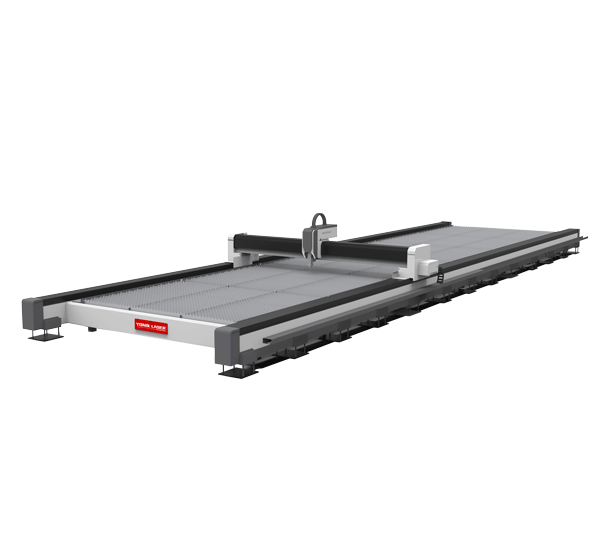

L Ground mounted ultra largeformat laser cutting machine
