HB Large exchangeplatform laser cutting machine

Laser Power
3000W - 60000W
Processing format
2500*8000mm
Linkage speed
100m/min
Applicable materials
Carbon steel plate, stainless steel plate, galvanized plate, aluminum alloy, etc
Application industry
Heating, chemical, food, machinery, textile, printing and dyeing, feed, medicine, building materials, etc

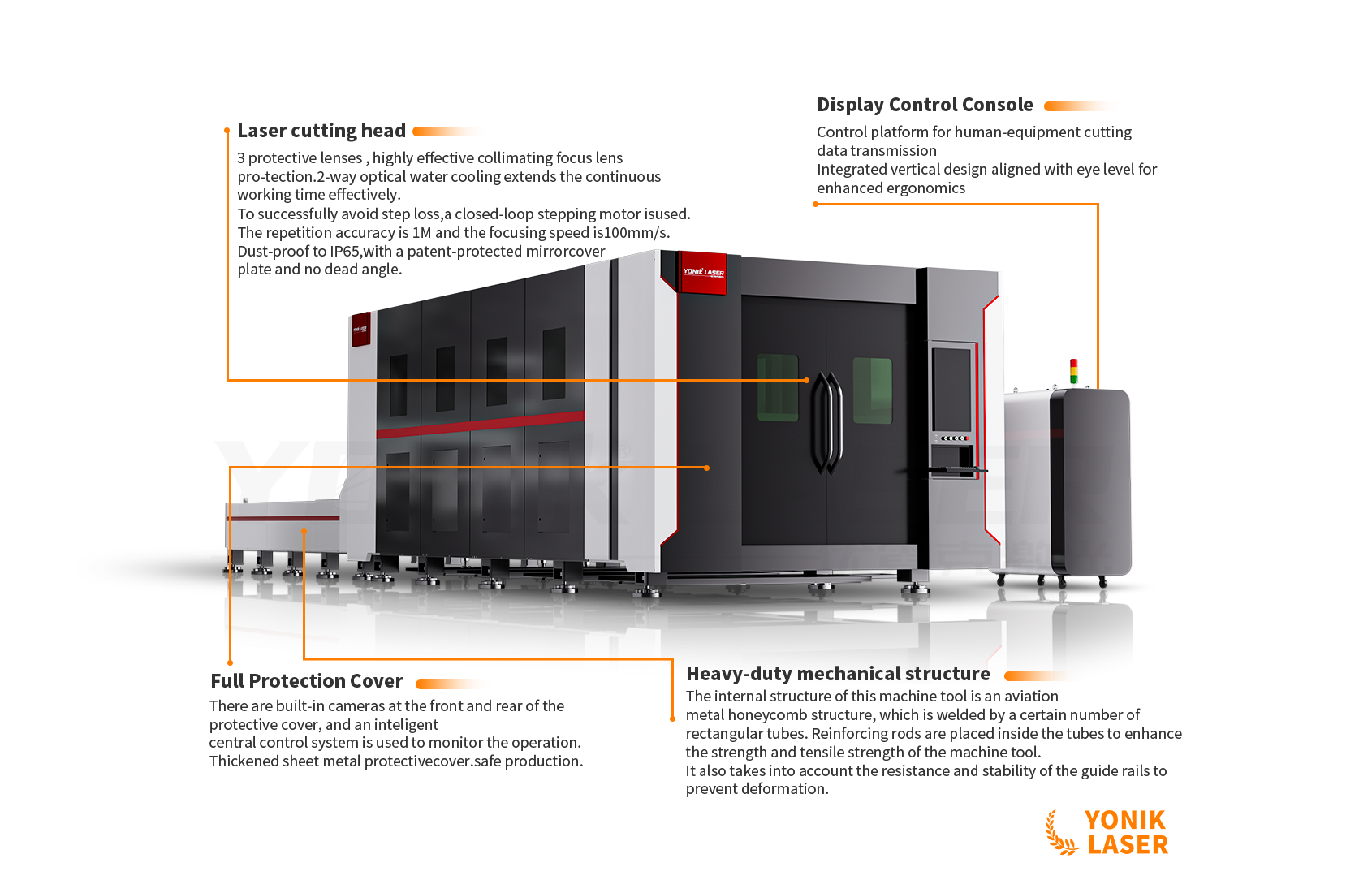

Product Introduction

Ultra-light aluminum beams are used, which are fire-resistant and high-temperature-resistant, and operate stably.

The machine tool adopts a servo dual-drive gantry structure, and the rack guide drive and machine tool drive systems are all imported brands.

The fully enclosed structure has a special laser protection window, and the smoke generated by cutting can be quickly removed, which is safe and pollution-free.

The exchange platform uses a heavy-duty plate welding bed to meet the load-bearing requirements of heavy plates; the dual-platform loading and unloading synchronous cutting operation improves cutting efficiency.

Model: YL4020HB YL6020HB YL6025HB YL8025HB

Customized solution

Advantage

Annealing

Eliminating welding stress through high-temperature annealing and natural aging
High intensity workbench

High intensity workbench, easy to disassemble and replace, no hindrance to production
High production efficiency

Real time dynamic feedback servo drive, precision gear transmission
Easy to operate and run

Advanced control system for intuitive adjustment of laser power

Parameter


Model	Cutting range	Mechanical positioning accuracy	Maximum acceleration	Maximum positioning accuracy	Laser power
4020HB	2000*4000mm	±0.05mm/min	1.5G	100m/min	3000W - 60000W
6020HB	2000*6000mm	±0.05mm/min	1.5G	100m/min	3000W - 60000W
6025HB	2500*6000mm	±0.05mm/min	1.5G	100m/min	3000W - 60000W
8025HB	2500*8000mm	±0.05mm/min	1.5G	100m/min	3000W - 60000W

* The above data is for reference only. Please refer to the actual product and product manual for specific information. Unless otherwise specified, the interpretation rights of the data involved in this website belong to YONIK Laser.
